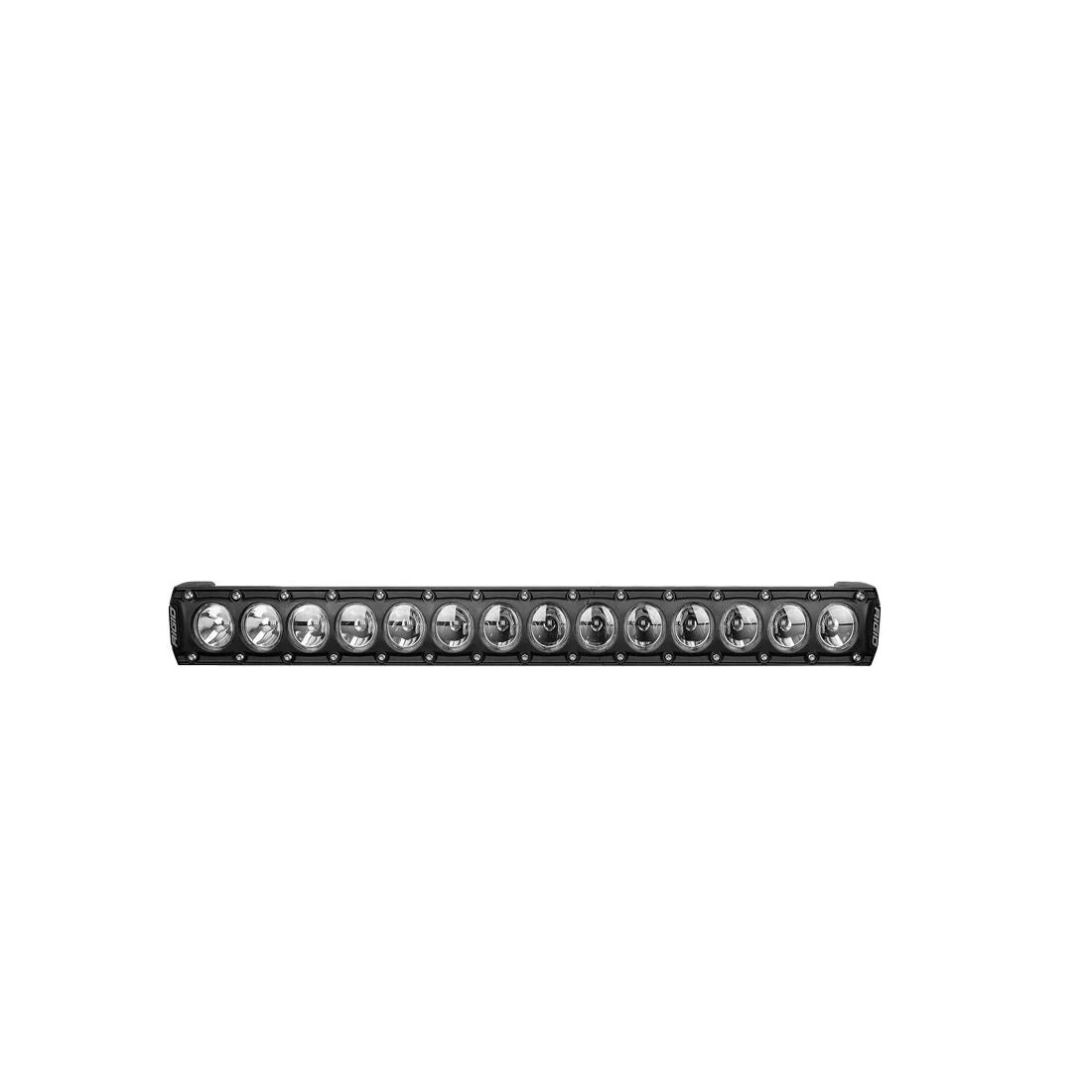

The Rigid Revolve 20 inch bar puts out 10,164 raw lumens through a Broad Spot beam that blends the reach of a spot with the spread of a flood, wrapped in a back-lit white trim ring that doubles as area or work lighting. High-grade aluminum alloy heatsink, textured black powder coat, and an impact resistant nylon bezel for protection against road debris and sun exposure.
Features
- Broad Spot Beam: Combines the reach of a spot beam with the spread of a flood for balanced visibility in any road or weather condition
- White Backlit Trim Ring: Pops in white and functions as an area or working light. Amber backlight version also available
- Aluminum Alloy Heatsink: High-grade aluminum construction protected by a textured black powder coat
- Impact Resistant Nylon Bezel: Extra layer of protection against road debris and sun exposure
- Surface Mount: Stainless steel L-brackets and mounting hardware included
Specs
- Size: 20 inch bar
- Raw Lumens: 10,164
- Watts: 84
- Current Draw at 14V: 6.3A
- Voltage Range: 9V to 36V

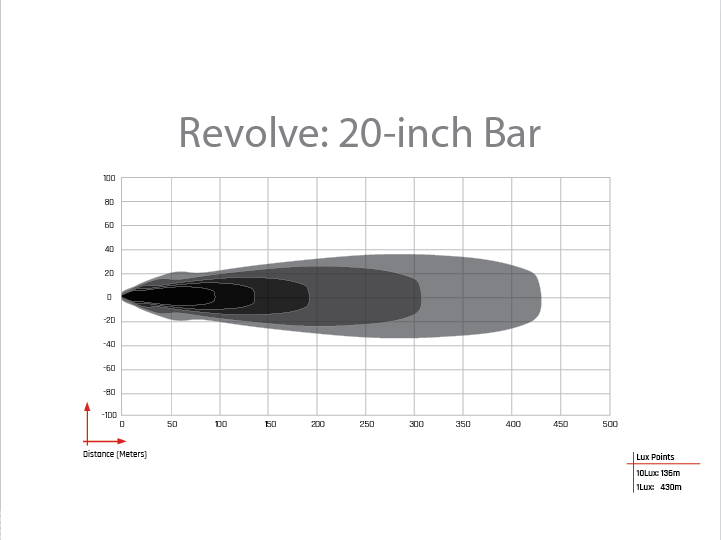

- Beam Pattern: Broad Spot
- Beam Angle: 20.5 degrees horizontal x 19.8 degrees vertical
- Peak Beam Intensity: 185,150 cd
- Lux at 10 Meters: 1,851.5
- Mount Type: Surface mount

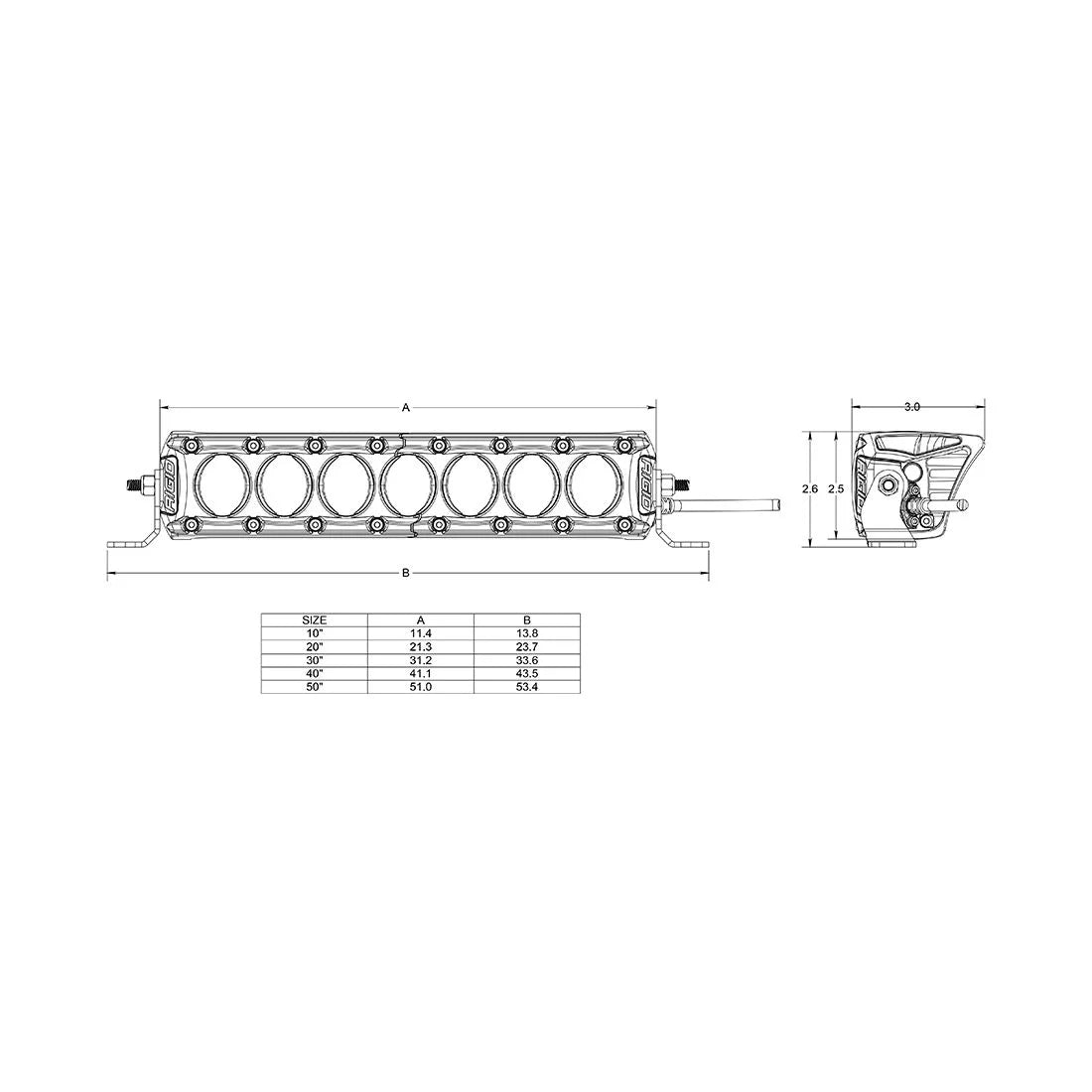

- Dimensions: 21.3 in W x 2.5 in H x 3 in D
- Weight: 4.3 lbs
- Part Number: 420613
What's in the Box
- Single light bar
- Stainless steel L-shape brackets
- Mounting hardware
- Open wire leads
Good to Know
- Wiring harness is sold separately. Rigid's Multi-Trigger Wire Harness, part 40200, is the matching harness. Shop the 40200 harness
- The 20 inch bar measures 21.3 inches wide at the housing. Measure your mounting spot before ordering
- Snap-on Revolve bar covers are available separately in black, amber, and yellow
