A pair of Squadron Pro pods with the wiring harness in the box. 4,095 lumens of usable light in a 3 inch housing, built by the brand that owns desert racing. The same pod we run on our own Defender bumper builds.
Why the Squadron Pro
Driving/Combo beam. A 42 degree spread with a 9 degree punch down the middle. Baja calls it maximum trail coverage in a single light, and that's how it performs.
IP69K sealed. Submersible, and it shrugs off a pressure washer.
Hard anodized, powder coated cast aluminum housing with a hardcoated polycarbonate lens.
uService replaceable lenses and optics. Swap beam patterns or go amber later without buying new lights.
5000K daylight color. Less eye fatigue on long night runs.

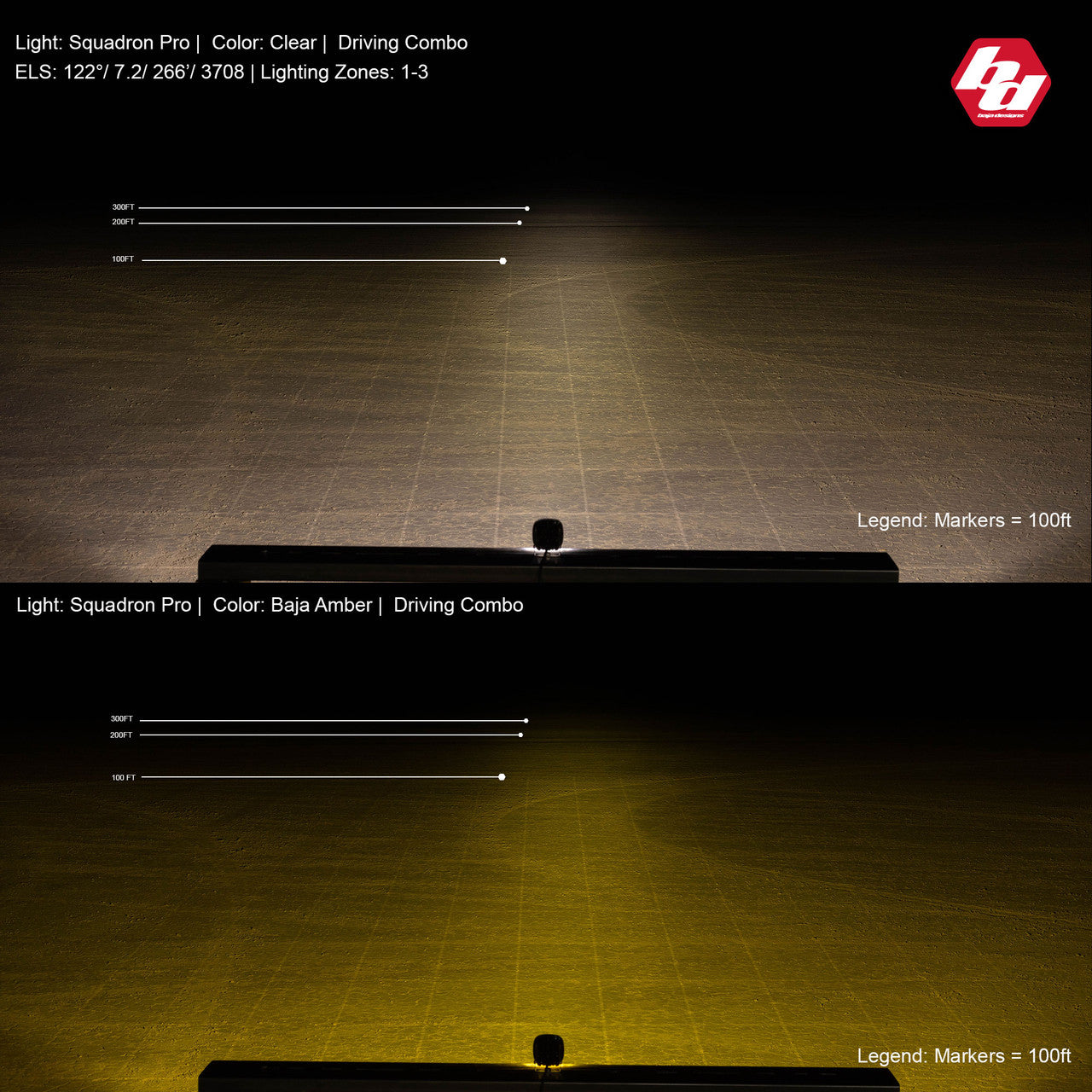

Beam Patterns
Driving/Combo is the do-everything pattern. Spot reaches farther, Wide Cornering fills dust and corners, Work/Scene floods up close, and amber lenses are available for dust and fog. All patterns are available in the Squadron Pro line.
Specs
- Output: 4,095 lumens
- Power: 41.4W, 3A draw
- LEDs: 4 Cree LEDs per pod
- Beam: Driving/Combo, 42 degree driving plus 9 degree spot
- Color temperature: 5000K daylight
- Housing: hard anodized, powder coated cast aluminum
- Lens: hardcoated polycarbonate, replaceable
- Sealing: IP69K, submersible, pressure washable
- Rated life: 49,930 hours
- Durability: exceeds MIL-STD810G, IK10 impact rated
- Size: 3.07 x 2.77 x 3.07 inches per pod
- Weight: 0.75 lb per pod
- Baja Designs part number: 497803

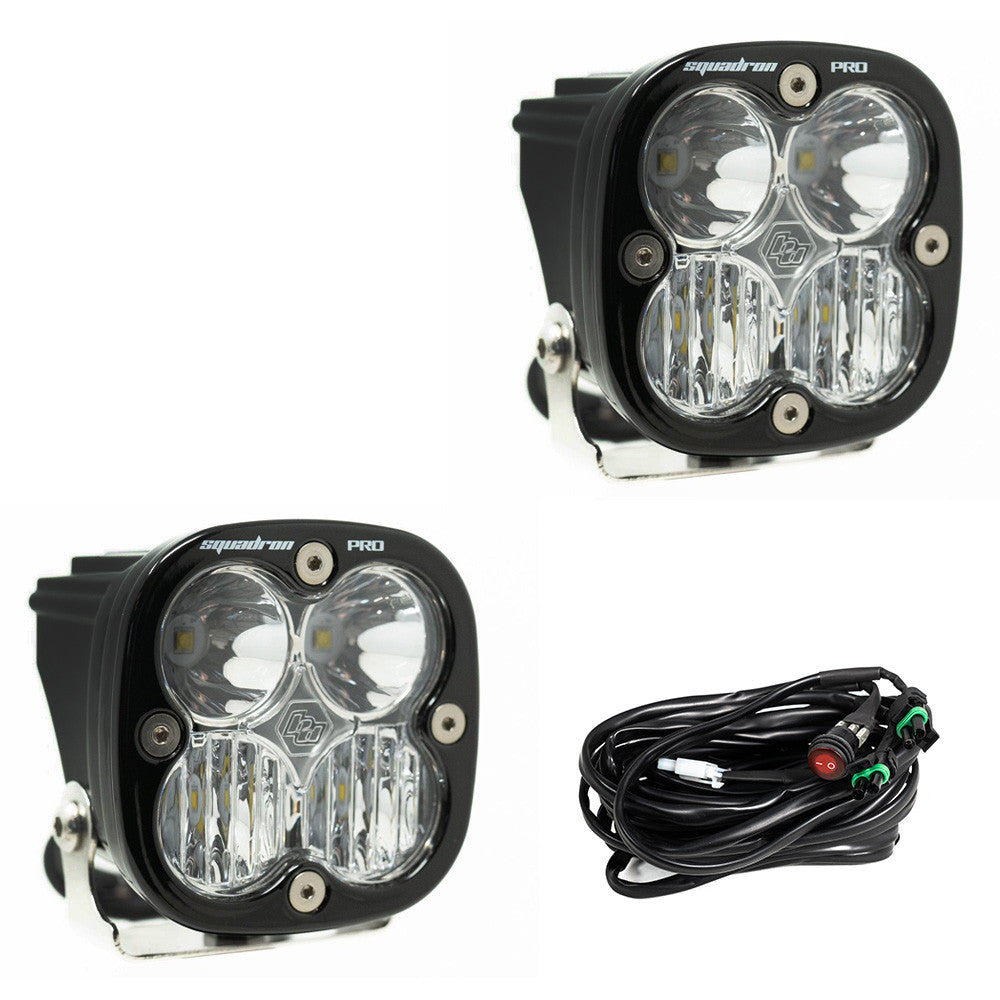

What's in the Box
Two Squadron Pro pods, wiring harness with switch and relay that runs both lights, and stainless steel mounting hardware and brackets.
Before You Order
Sold as a pair with the harness included.
The included harness has its own switch and relay. If your machine has factory aux switches or a switch panel, you may not need it. Baja offers an upfitter harness for those setups.
Warranty
Baja Designs limited lifetime warranty for recreational off-road use, original owner.
